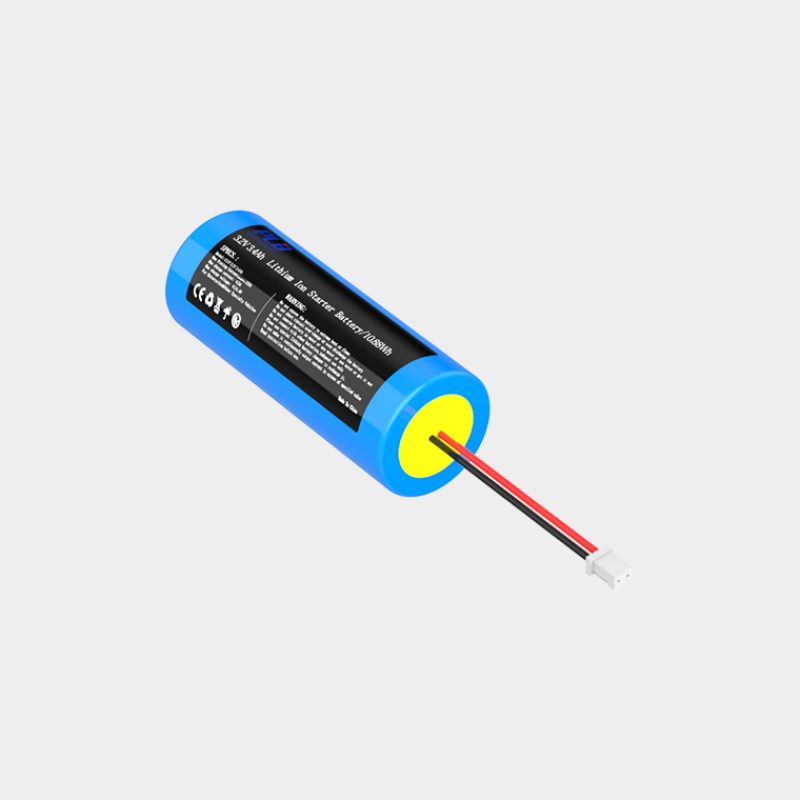

3.2V/6.4V 3300mAh/6600mAh/9900mAh Emergency Light Battery-PLB battery

3.2V/6.4V 3300mAh/6600mAh/9900mAh Emergency Light Battery

Product Features:
• Equipped with customized IC and self-developed BMS solution.
• Equipped with NTC, adjust and control the charging and discharging temperature.
• Battery Balance Function:adjust dynamically battery voltage differentials and extend battery life.
• Auto Sleep Mode:enter automatic sleep mode when no charging or discharging is detected, with a current ≤ 120uA.
• Charging Protection:Battery is in charging protection state when charging current exceeds the set value for three consecutive times.
• Discharge Protection: Battery is in discharge protection state when the discharge current exceeds the set value for three consecutive
times.

Inquiry

Model

3.2V 3300mAh-1S1P

3.2V 6600mAh-1S2P

3.2V 9900mAh-1S3P

6.4V 3300mAh-2S1P

Rated voltage	3.2V	3.2V	3.2V	6.4V
Battery capacity	3300mAh	6600mAh	9900mAh	3300mAh
Cell material	LiFePO4	LiFePO4	LiFePO4	LiFePO4
Standard charging current	1.65A	1.65A	1.65A	1.65A
Max. charging current	0.5C	0.5C	0.5C	0.5C
Max. continuous discharge current	1C	1C	1C	1C
Battery weight	～ 100 g	～ 200 g	～ 300 g	～ 200 g
Resistance	≤40mΩ	≤30mΩ	≤20mΩ	≤80mΩ
Charging temperature	0℃～60℃	0℃～60℃	0℃～60℃	0℃～60℃
Discharge temperature	-20℃～60℃	-20℃～60℃	-20℃～60℃	-20℃～60℃
Product dimensions	70*32mm	70*64mm	706262mm	140*32mm
Cycle life	6000+	6000+	6000+	6000+
BMS/NTC	optional	optional	optional	optional
Standard Compliance	IEC 60598-2-22:2022，AS 2293.3，IEC62620，IEC62133，UN38.3
